Specifications Aug 2008 Pricing
| Rake Length |
Number of Tines |
Tine Thickness |
Price |
| 7' |
7 |
1.25" x 16" |
$ 1,499 |
| 8' |
8 |
1.25" x 16" |
$ 1,671 |
| 9' |
9 |
1.25" x 16" |
$ 1,895 |
| 10' |
10 |
1.5" x 20" |
$ 1,995 |
| 11' |
11 |
1.5" x 20" |
$ 2,195 |
| 12' |
12 |
1.5" x 20" |
$ 2,295 |

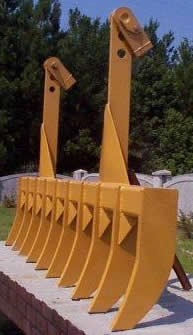

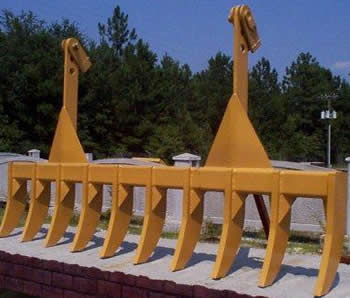

| · Rakes are made with 6 x 6, 1/2" thick wall tubing for main frame. The arms (shown in the pictures) are adjustable for different heights and come with the brackets to weld to the dozer blade and the pins. |
| · Additional brackets can be ordered to fit the rake to other machines.
|
| · Since we make these rakes, we can also customize your rake to fit any configuration you desire for your application. |
Specifications Jan 2006 Pricing
| Rake Length |
Tine Thickness |
Number of Tines |
Weight |
Price |
| 6' |
1" |
7 |
1,000 lbs |
$ 1,950 |
| 7' |
1" |
8 |
1,100 lbs |
$ 2,150 |
| 8' |
1" |
9 |
1,300 lbs |
$ 2,425 |
| 9' |
1.25" |
10 |
1,450 lbs |
$ 2,550 |
| 10' |
1.25" |
11 |
1,625 lbs |
$ 2,700 |
| 10' |
1.5" |
11 |
1,710 lbs |
$ 3,250 |
| 11' |
1.5" |
12 |
1,800 lbs |
$ 3,600 |
| 12' |
1.5" |
13 |
1,940 lbs |
$ 3,850 |
| 13' |
1.5" |
14 |
2,100 lbs |
$ 4,200 |
| 14' |
1.5" |
15 |
2,250 lbs |
$ 4,500 |
The tines are made of AR400 high strength alloy wear. The tubing is 6" x 6" x 1/2" and the structural
steel and the bracing is 1/2" thick high strength plate. The rakes are doubled welded for extra strength
and features stress point bracing.
All Dozer rakes can be manufactured per customer's requests and specifications.
Height, width and thickness of tines will be made according to instructions and hook-ups fitted to the machine.
The rake can be attached at the top of the blade, on the sides of the blade, or it can be pinned for dozer
hook-up for use without the blade.
|
 |
