Be sure to check with our sales dept which rake style you really want and
confirm current price and specific style top clamp before ordering. |
Specifications Nov 2005 Pricing
| Width |
Height |
Weight |
Tines & Width |
Tine Spacing |
Tine Penetration |
Price |
| 79" |
55" |
850 lbs |
(7) 1.0" |
12" |
25" |
P.O.R. |
| 85.5" |
60" |
1,695 lbs |
(7) 1.5" |
12.5" |
27" |
P.O.R. |
| 96" |
60" |
1,900 lbs |
(7) 1.5" |
12" |
27" |
$ 6,000 |
| 108" |
60" |
2,100 lbs |
(8) 1.5" |
14" |
27" |
$ 6,250 |
| 120" |
64" |
2,300 lbs |
(9) 1.5" |
12.25" |
36" |
$ 6,500 |
| Hydraulic Top Clamp Option: Add $3,750.00 to $5,500.00 and 1,400 lbs depending on rake and machine size. |
| Features: |
| · Double welded for added strength. |
· Stress point bracing. |
| · Custom fitted for your loader(s). |
· Tines are make of T-1 steel. |
| · 1.5" High strength wear alloy. |
· Structural 6 x 6 and 4 x 4 tubing. |
| · Structural 1/2" high strength plate. |
· Bracing 1/2" high strength plate. |

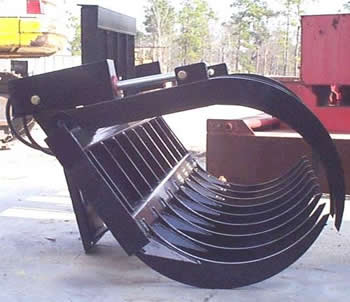

Top Clamp Grapple Kit for Bucket |
Top Clamp Grapple Kit for Bucket |
| |
| The top clamp kit is $4,725.00 |
| The whole bucket with top clamps is $9,975.00 |
| |
Top Clamp Grapple Kit for Bucket |
Top Clamp Grapple Kit for Bucket |
| |
| |
| |
| Photos of other top clamp grapples |
| |
For 2.5-4.0 cubic yard Buckets |
For 1.3-2.5 cubic yard Buckets |
| Material Handling Applications: |
| |
| · Brush and tree handling, storm clean-up |
| · Scrap transport |
| · Bale moving |
| · High-capacity handling of awkward objects |
| · High-capacity handling of loose material |
| TC Grap Features: |
| |
| · The cylinders are designed for 4000 psi working pressure. A piston with internal hydraulic cushioning is used to minimize the "slamming" effect of opening and closing the grapple. |
| · Grapple hoses come equipped with nylon protective sleeve. |
| · All pivot pins feature zero-maintenance bushings and wiper seals. |
| · The hook and retaining pins are hardened, chrome-plated steel to resist corrosion. |
| · In order to protect hydraulic cylinders, protector guards are equipped as standard and cylinder rods are located to the top of the grapples. |
| · The wide space between the grapple and the bucket allows high-capacity handling of loose material. |
| · The quick-attach feature of this grapple requires that custom mounting kits be welded to the bucket. |
| |
| |
 |
 |
