YM Grapples

YM800            YM800, Semi Open or Semi Enclosed
Semi Open or Semi Enclosed



YM Grapples        YM Grapples

YM Grapples        YM Grapples

YM Grapples        YM Grapples

YM Grapples


YM800 Grapple

YM600, Semi-close type
YM600, Semi-close
YM600, Open type
YM600, Open Type
YM600, Close type
YM600, Close Type


orange peel grapple orange peel grapple


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


open type open type

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


semi-close type semi-close type

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


close type close type

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *









YM450 Grapple
YM450 Grapple

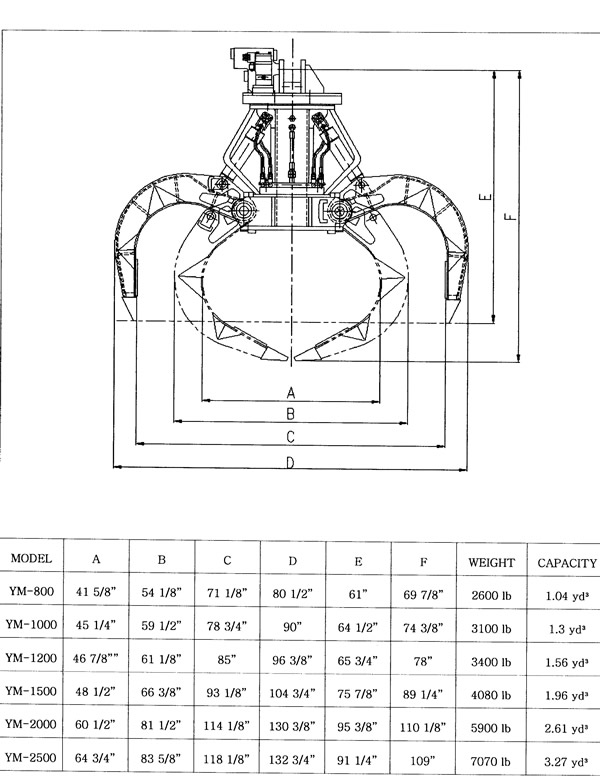

Orange Grapple Drawing

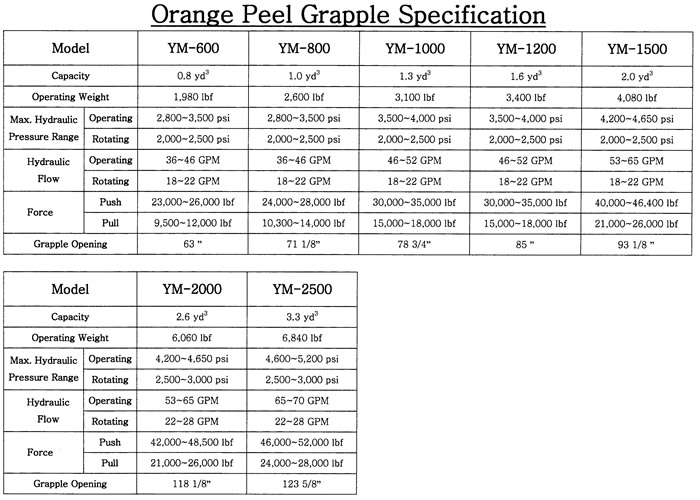

Orange Peel Grapple Specification


Orange Peel Grapple Specification


Orange Peel Grapple Specification

Orange Peel Grapple for CAT M318 Orange Peel Grapple for CAT M318

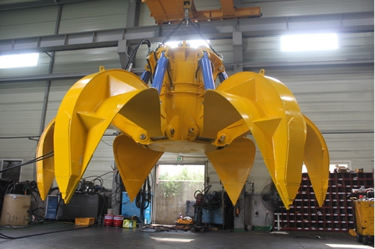

orange peel grapple

orange peel grapple


Orange Peel Grapples:

· Orange Peel Grapples are light weight, but provide strong structure and high power.
· The orange peel grapples are economically designed to handle, load and unload steel scraps, waste papers and industrial waste.
· Standard models have 5 tines, but 4 tines or 6 tines are also available for custom made as well.
· For long life, tine edges are made from special steel "HARDOX400".
· In order to protect hydraulic cylinders, protector guards are equipped as standard and cylinder rods are located to the top of the grapples.
· To secure heavy equipment, the hydraulic motor has a brake valve.
· Open-type, Semi-Closed and Closed type tines are available.
· Hydraulic Rotation, Manual Rotation or No-Rotation is available.


   YM Grapple Pricing (fixed model only)
Model Tine Qty Carrier Weight Capacity - cu yd Operating Weight Price
YM200 5   0.32   660 lb $ 8,795
YM300 5   0.45   740 lb $ 9,350
YM450 5   0.58 1,300 lb $ 14,360
YM600 5 13 - 17  Ton 0.8 1,980 lb $ 15,860
YM800 5 20 - 28  Ton 1.0 2,600 lb $ 17,465
YM1000 5 28 - 30  Ton 1.3 3,100 lb $ 19,360
YM1200 5 30 - 32  Ton 1.6 3,400 lb $ 22,255
YM1500 5 32 - 40  Ton 2.0 4,080 lb $ 28,265
YM2000 5 40 - 45  Ton 2.6 6,060 lb $ 33,280
YM2500 5 45 - 50  Ton 3.3 6,840 lb $ 39,960
YM3500 5 55 - 60  Ton 4.6   $ 49,775
YM5000 5 70 - 77  Ton 6.5   $ 70,755
YM7000 5 100 -  Ton 9.2   $ 86,235
YM10000 5 150 -  Ton 13.0   $ 107,795
NOTE: There is an additional charge for rotation.


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

Rock Handling by Orange Peel Grapple YM1000
YM1000 Orange Peel Grapple           YM1000 Orange Peel Grapple

YM1000 Orange Peel Grapple           YM1000 Orange Peel Grapple

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Extendable telescoping attachment extension

extendable telescoping attachment extension
* * * * * * * * * * * * * * * * * * * * * * * * *



YM300 grapple YM300 grapple

YM300 grapple YM300 grapple



YM300
YM300 Grapple



YM450
YM450 Grapple












YM2000 3 Cu Yd 5-Tine
YM2000 3 Cu Yd 5-Tine


YM2500 3 Cu Yd 5-Tine
YM2500 3 Cu Yd 5-Tine



orange peel grapple orange peel grapple


YM800 Grapple


Extension arm with grapple

YM800 YM1000, Close Type or Fully Enclosed
YM1000 - Close Type or Fully Enclosed


Orange Grapple


SLG Specs
SLG-700 SLG-1000


SLG-3000



self load grab



SLG-12000
Large self loading grapple  ---  model SLG-12000
SEMI CLOSED STYLE ORANGE PEEL
