HP (High Performance) Thumbs

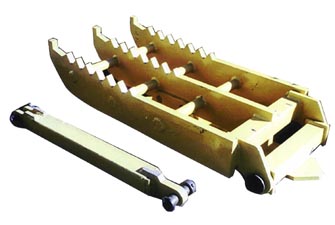

Bodine Thumb Bodine Thumb
Bodine Thumb Bodine Thumb

Specifications
Excavator Class Width x Length Weight Pin Diameter Tine Thickness Tines Price
60-120,000 lbs 33 x 72 1,786 2" 1.5" 3 $ 3,300

·  Our independent thumb has the best price/weight value in the industry.
·  Tines are 10" wide by 1.5" thick with serrated teeth and an exclusive hook tine on the end to pull material toward the machine to maneuver and separate objects.
·  Through tine machining with butt end welding for better strength.
·  Base cross member utilize 4.25" box style cross-bracing.
·  Base plate is one continuous piece that is 1" thick by 9.5" wide and 52" long.
·  Stiff arm is 52" and also constructed of 4.25" box tubing with 2" pins.
