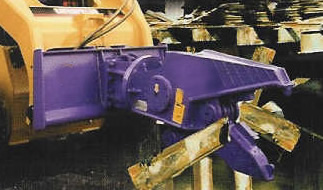

RMS200 / DFS03
Mini Shear / Concrete Cracker







(Click on above pictures to enlarge)




   Alternative Jaws  -  Shear or Concrete Cracking Jaws with Re-bar Cutter

  ·  For Mini Excavators.
  ·  For Loader Backhoes.
  ·  For Skid Steers.

Application - Demolition work involving concrete and re-bar destruction.

Design -
  · Powerful jaw design to maximize destructive force of machine.
  · Wide jaw serves dual function as both a material crusher, as well as material shear.
  · Manual, self aligning head adjusts to angle of material being demolished.
  · High strength, hard-faced components in wear areas to promote durability and long life.

The cutting capacity for the shear Model: DFS03 (RMS200) is as follows:
  · Reinforcing Bar: 25×3ea (1" x 3ea)
  · Channel: 100×50×5 (4" x 2" x 1/5")
  · Angle: 80×80×6 (3 1/5" x 3 1/5" x 1/4")



Specifications
Max
Jaw Open		 Max
Blade Opening 		Max
Cutting Force		 Max
Crush Force		 Max
Material Cut Capability		 Overall Length Weight Price
16" 8" 167,520 lbs @ 3,000 psi 53,960 lbs @ 3,000 psi 3" x 1" 60" 994 lbs $ 12,900.


Host Machine Requirements
Machine Weight (lbs) Oil Flow Requirement (gpm)
5,000 - 12,000 11.6 - 24.8





RMS200  Cutting 1 1/8th Inch Rebar









RMS200 with 4 inch blades in throat for crushing concrete and
cutting steel and rebar. Optional 8 inch blades also available.


8 inch blade on unit below




* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *




* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *











































* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *



* * *  Click here for RMS200 Videos  * * *


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


DFS03S    Specification




  (Click on drawing to enlarge)
